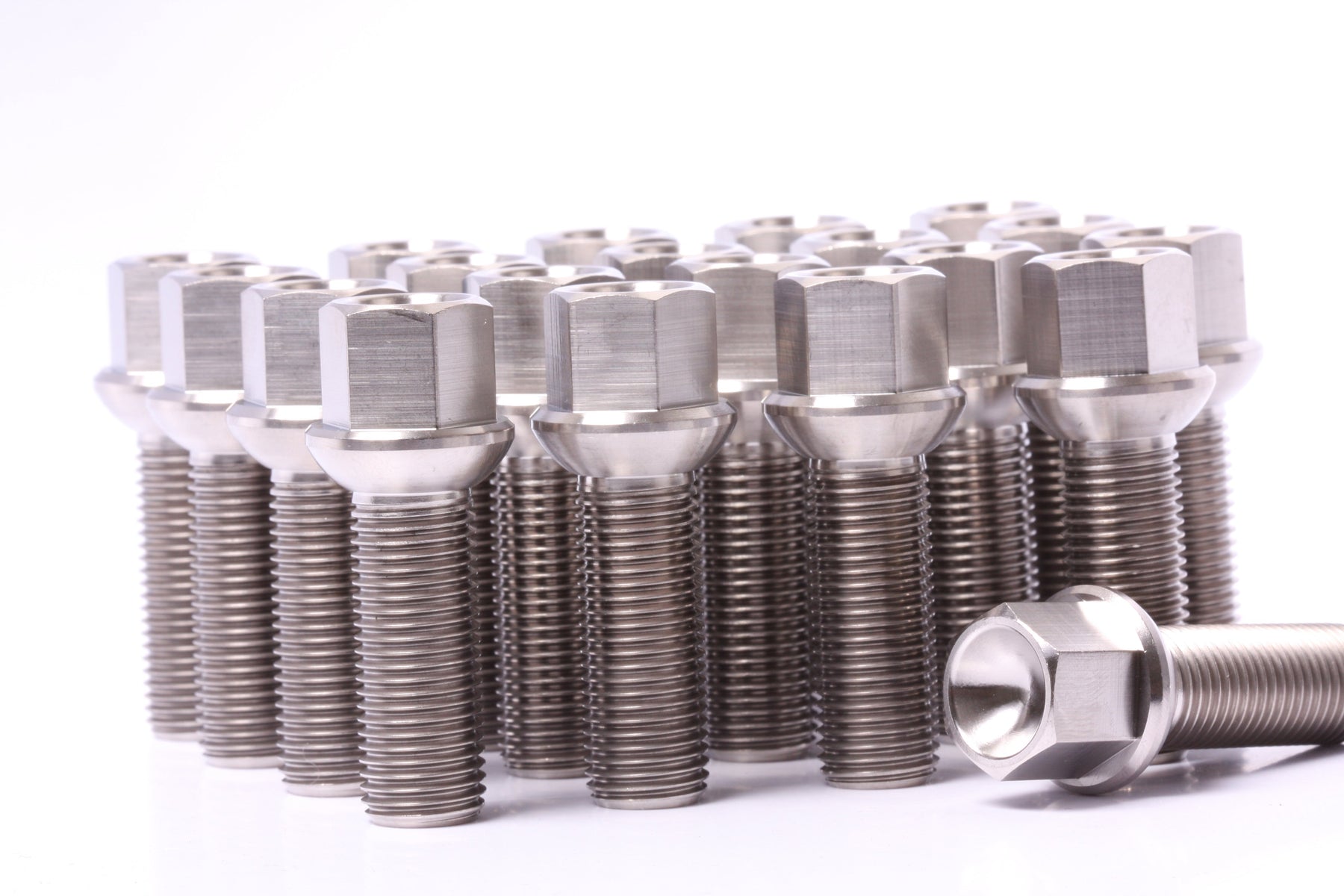

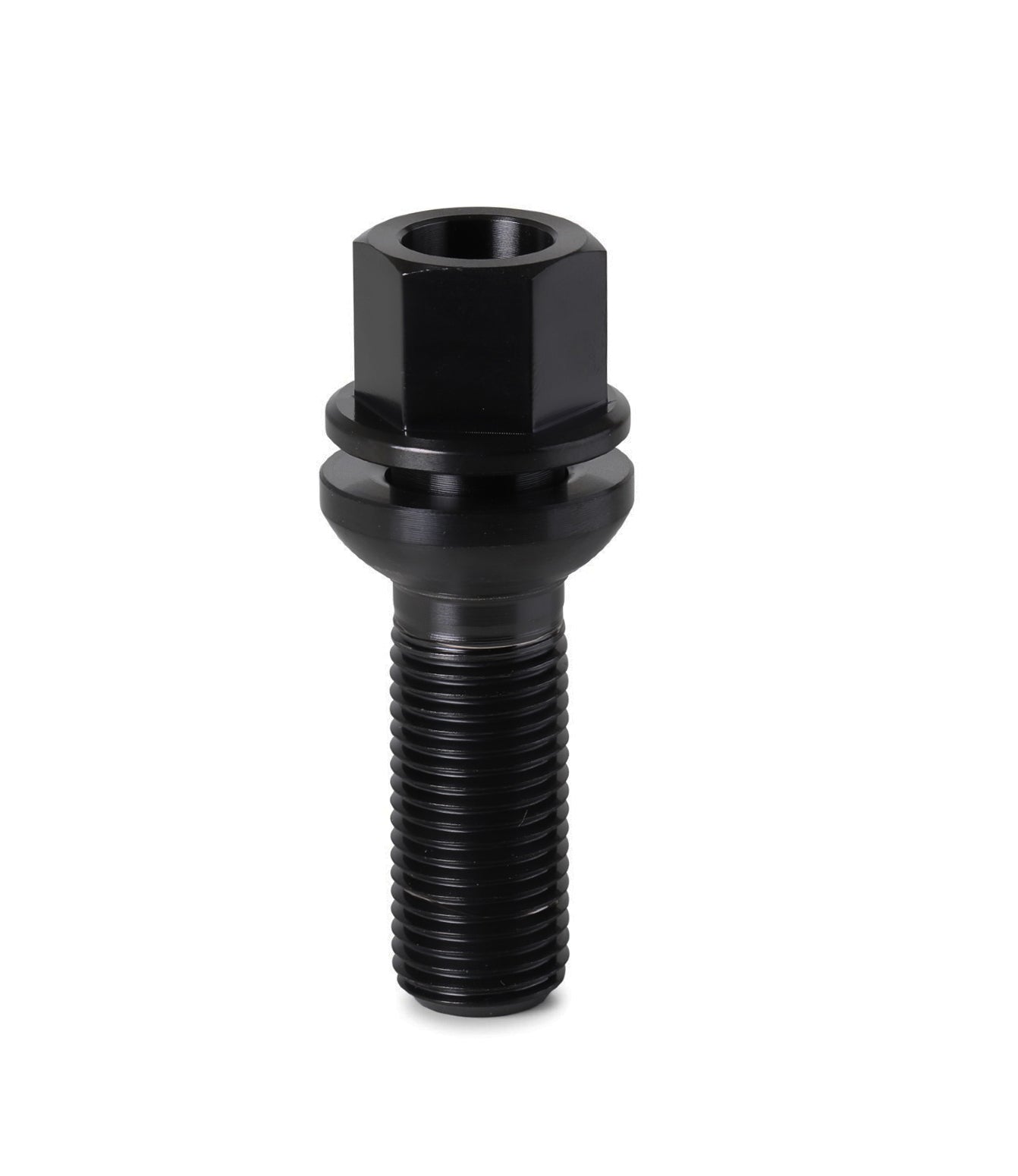

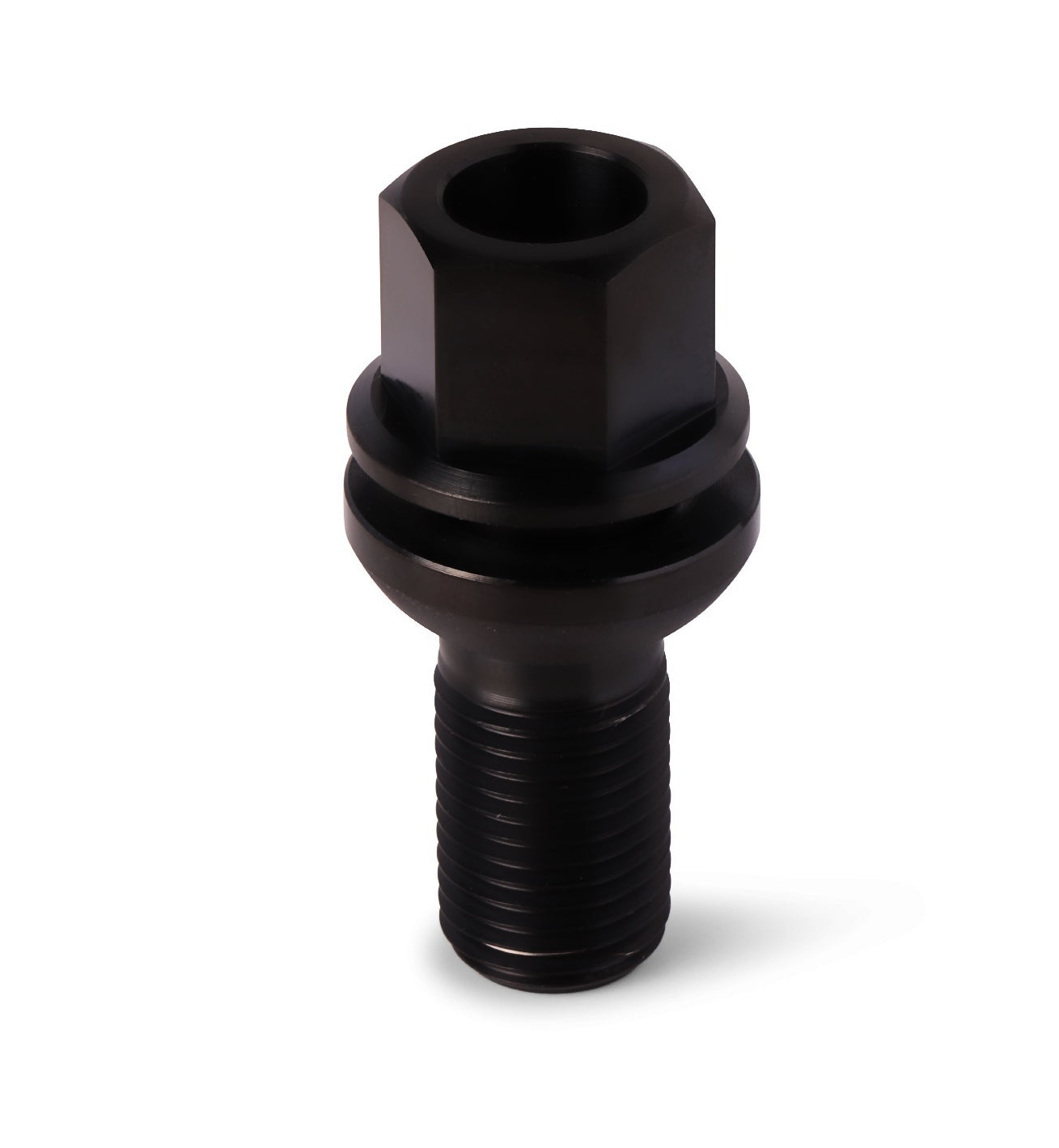

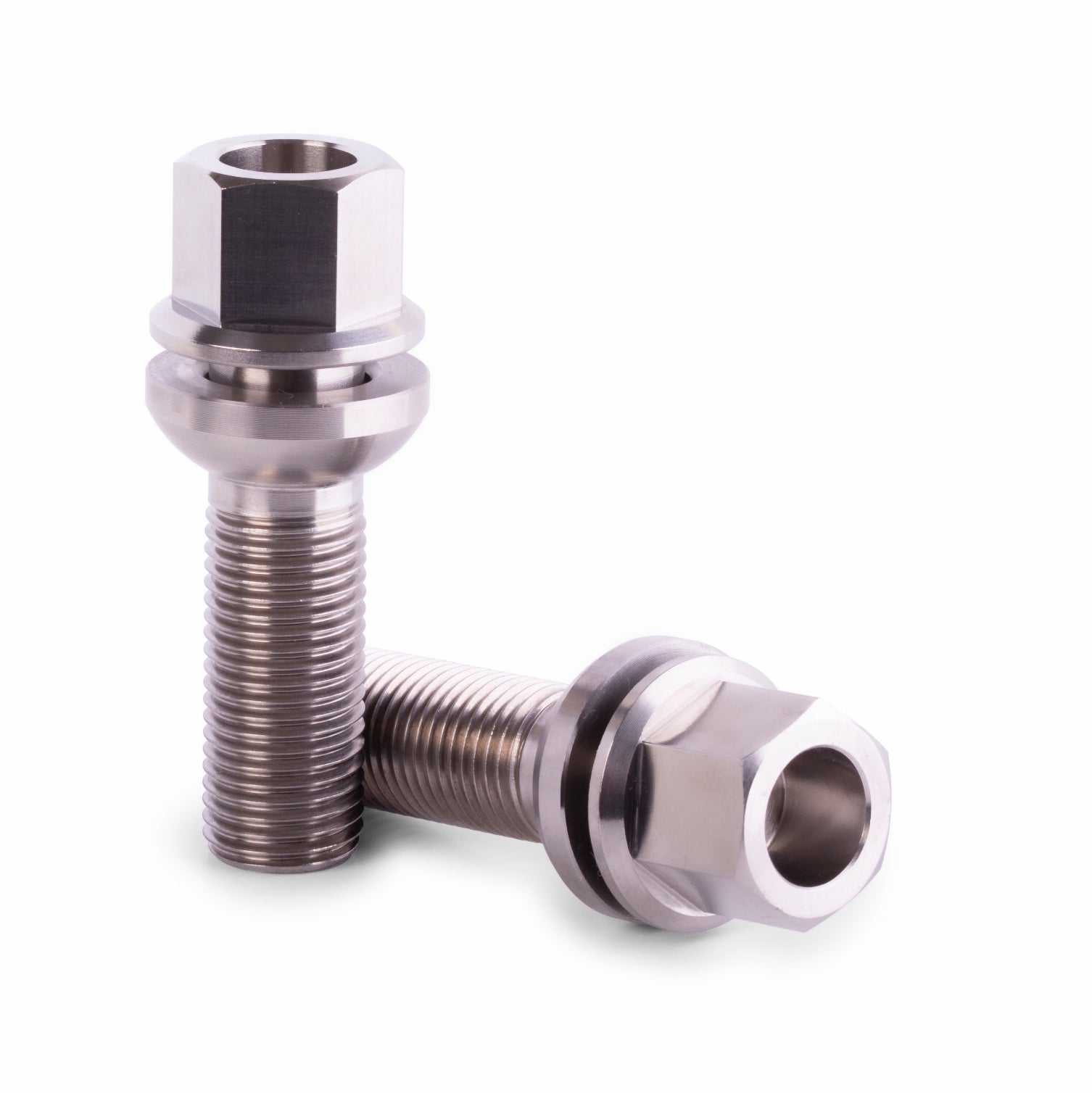

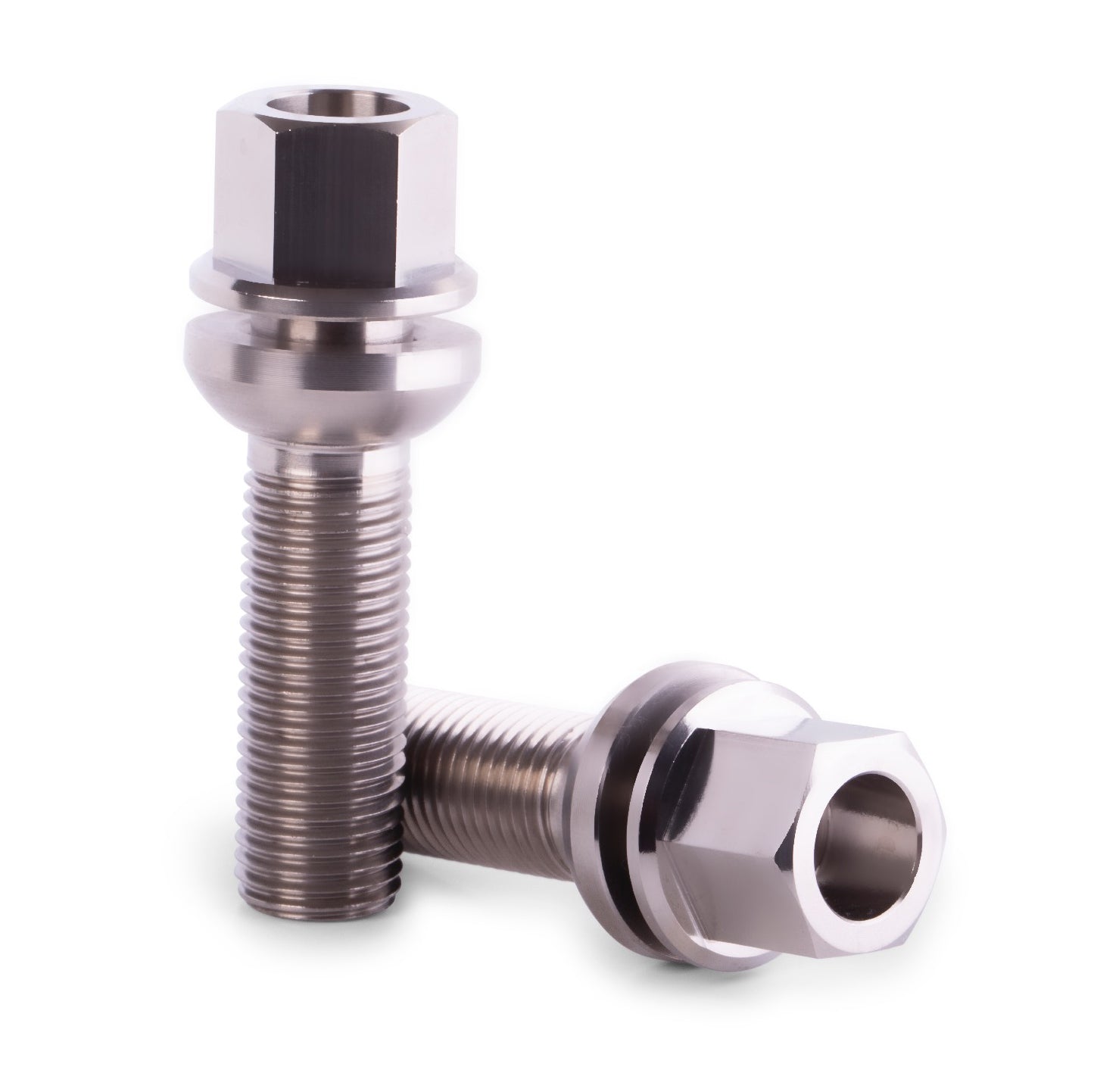

Manufactured from aerospace grade 6AL4V Titanium, these titanium lug bolts will not corrode or rust and offer a significant weight savings on your Mercedes while giving a very sporty and aggressive look. Rolled threads for superior fatigue resistance. Available in natural 6AL4V Titanium or BLACK PVD titanium color (the most durable Black and a much more intensive process than anodizing or powder coating). Available in several shaft lengths from 28mm to 60mm. M14x1.5 except for the GLE which is M15x1.25.
R14 ball seat.
If you are using aftermarket wheels that use cone/conical seats instead of ball click HERE
If you have an older Mercedes that uses M12 bolts click HERE
For Mercedes AMG GT/GTS/GTC/GTR up to 2022 model year click HERE
G Class Mercedes use the 45mm version.

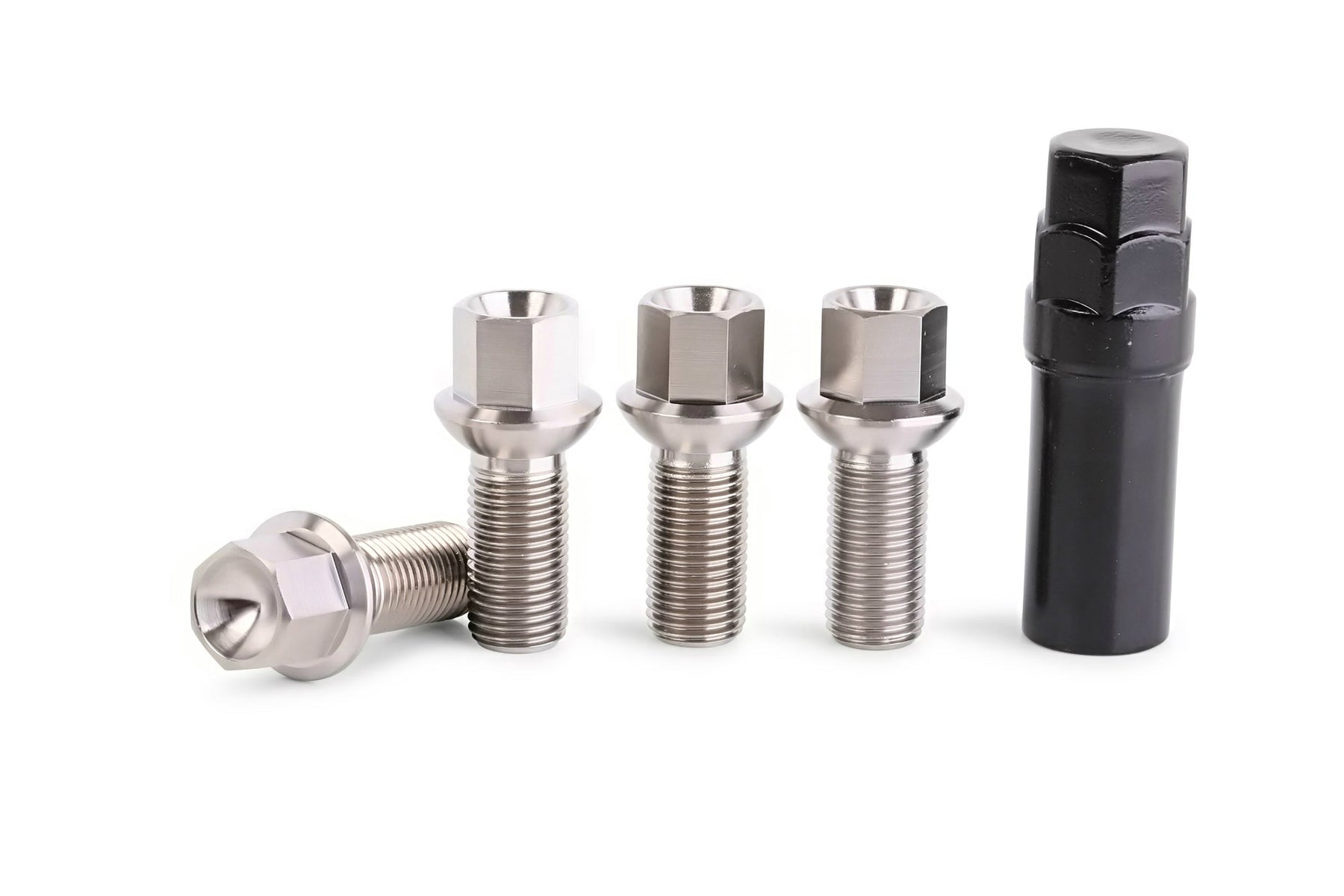

The standard length of 28mm is also available with a specially designed and very beautiful lock bolt version. The lock bolt version will have 16 lug bolts, 4 lock bolts and 1 key tool. Lock bolts come with 7 sided hex heads that look aesthetically identical to the standard 6 sided hex but need the special tool for removal.

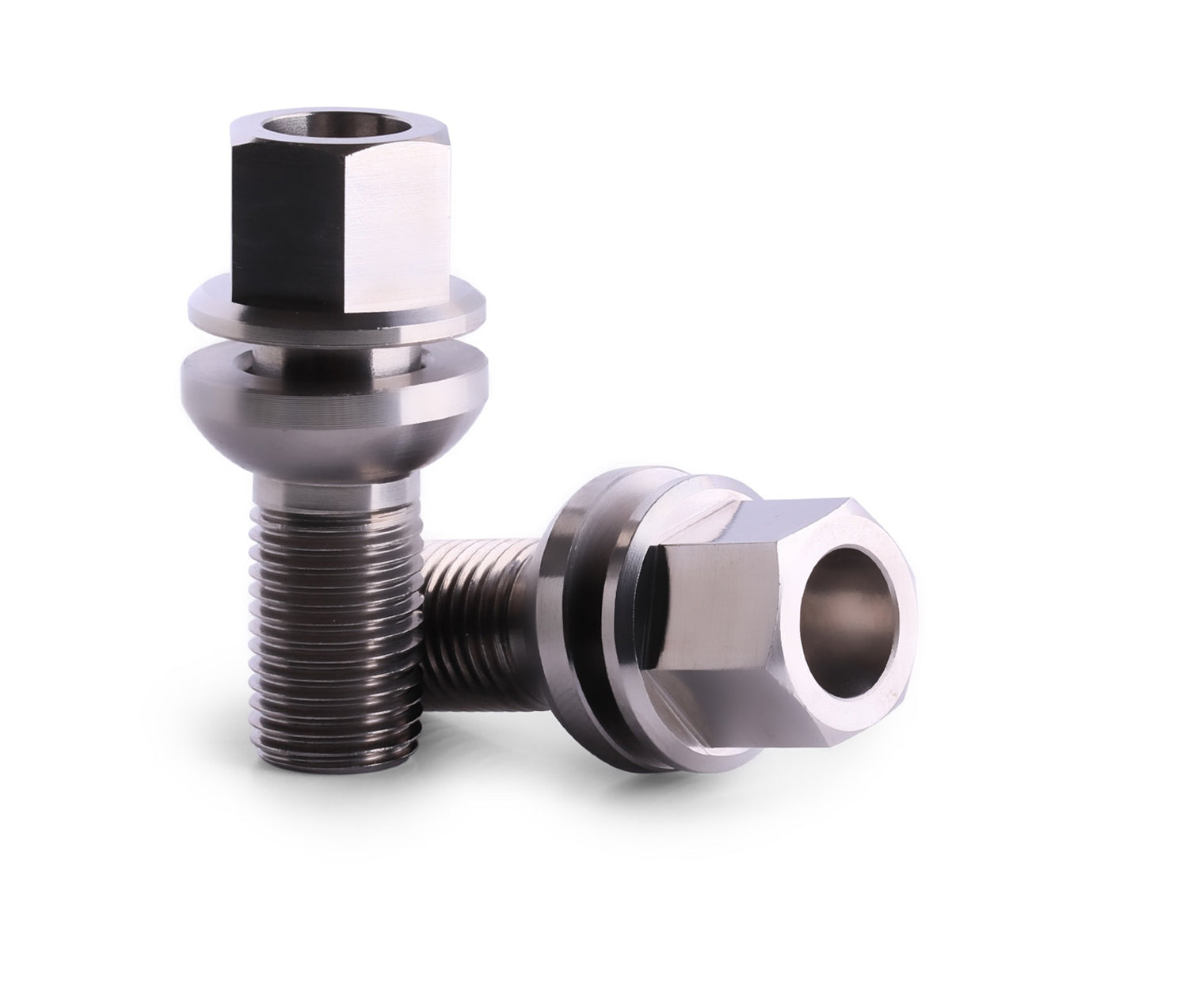

The 28mm shaft version is the equivalent dimensions to Mercedes part numbers A0009904907, A0009908307, A1634010370, A2114010370, W01331909330.

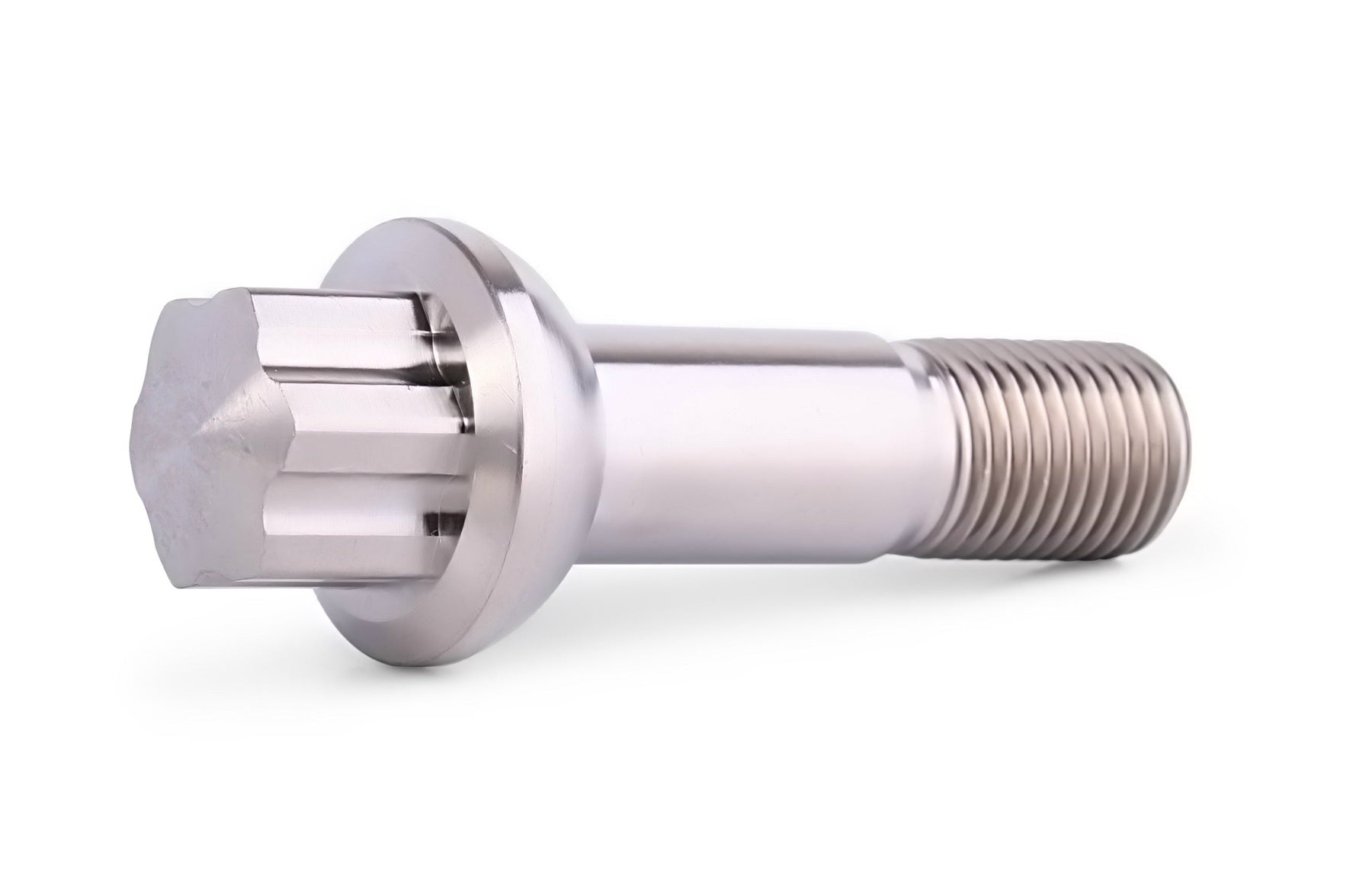

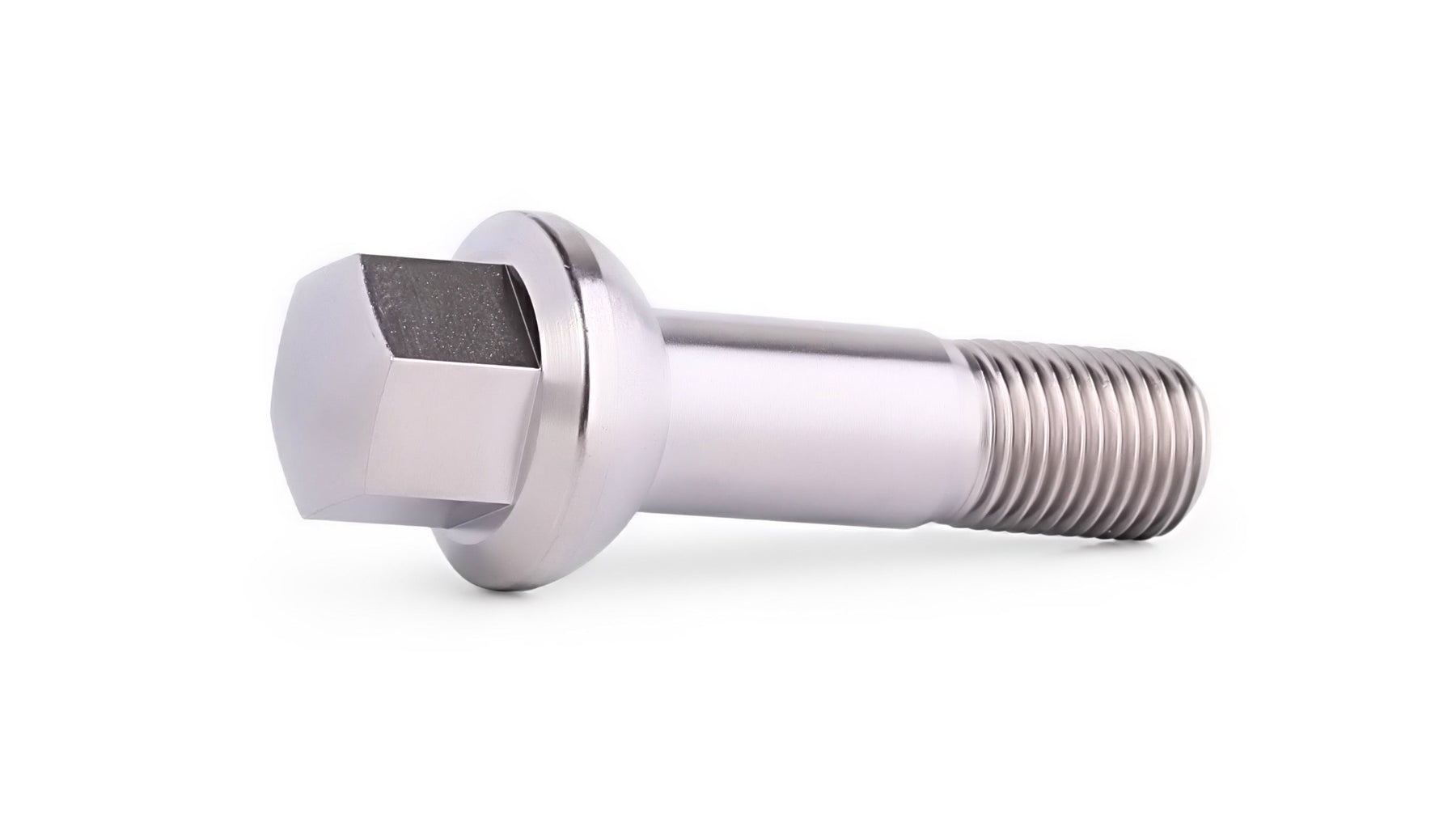

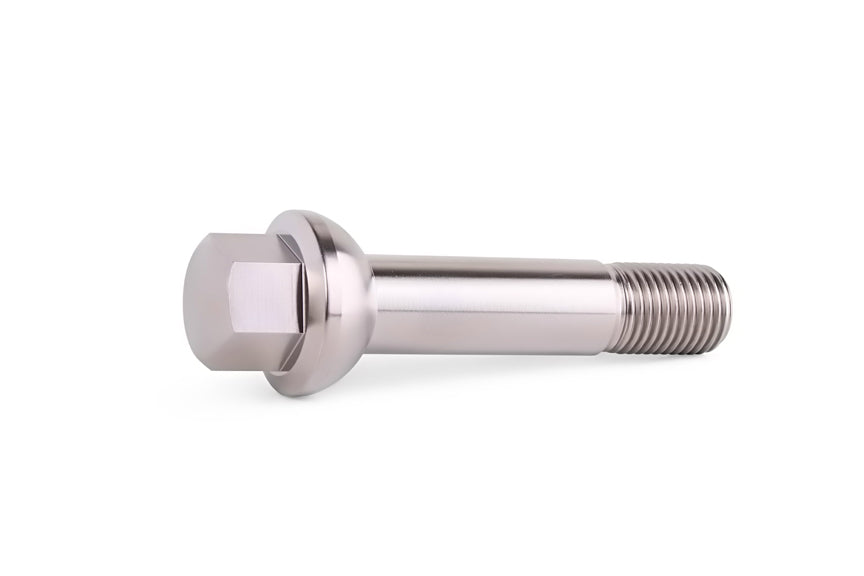

We also make a 45mm shaft length which is used in many newer Mercedes including the G class (not the GLE) it is M14x1.5x45 with a 69mm overall length and equivalent to part A0009905407 and W01331819237. This comes in a star head pattern which uses the same 17mm Mercedes tool or a standard 17mm hex head. This 45mm shaft version lug bolt is also used for the 2023 AMG GT 4 door coupe. also If you need this shape but are using 15mm spacers we also make the 60mm shaft version.
GLE & 2020+ GLS

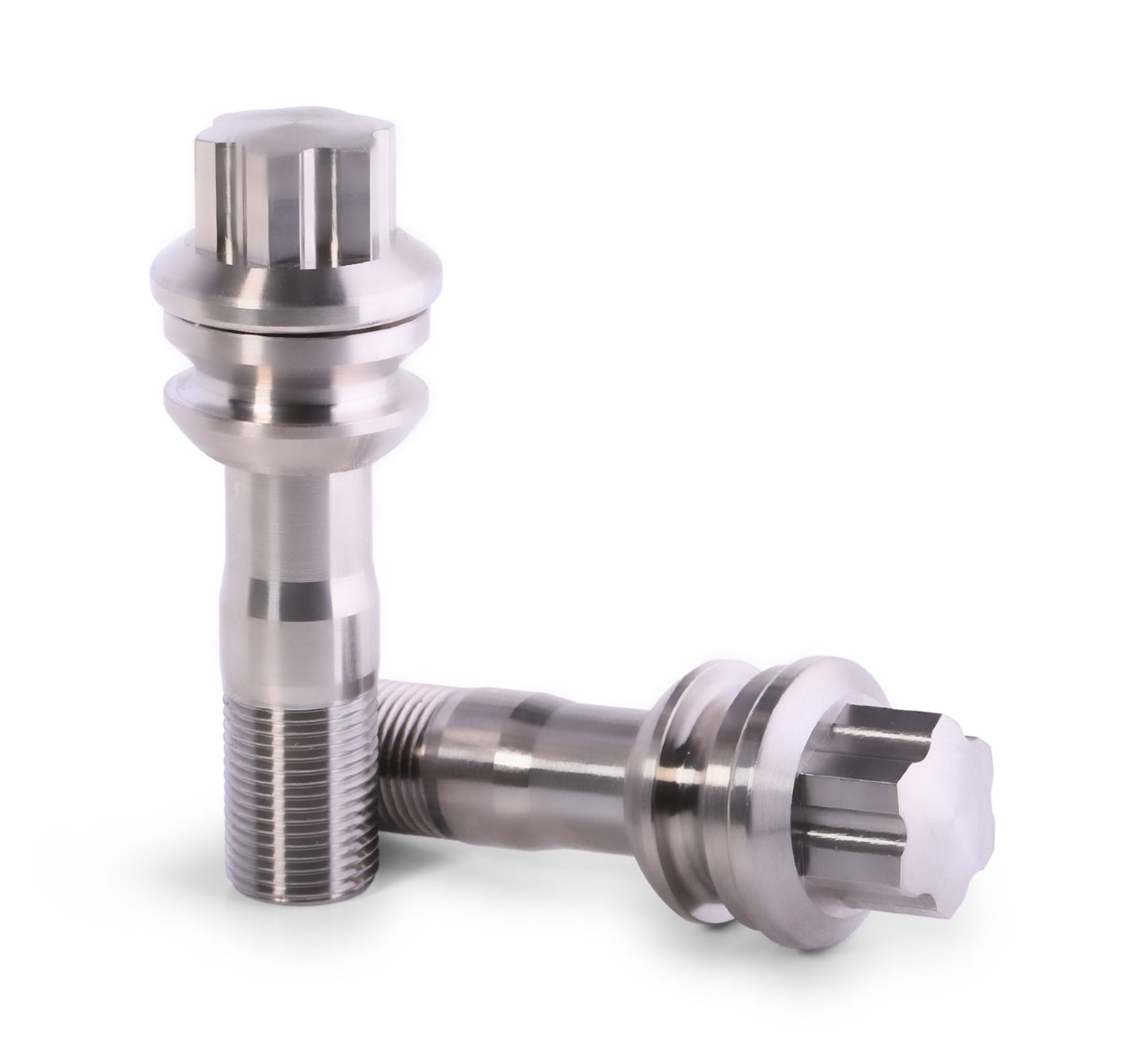

For all GLE and 2020 and newer GLS models we make an OEM dimension lug bolt which is M15x1.25x45 and part number 0009904518 or 0009904418 . If you are using aftermarket wheels that take a cone base bolt please let us know as the original bolt will not work. We do offer the OEM version in a 10mm longer version for those using spacers, please let us know if you need this length.

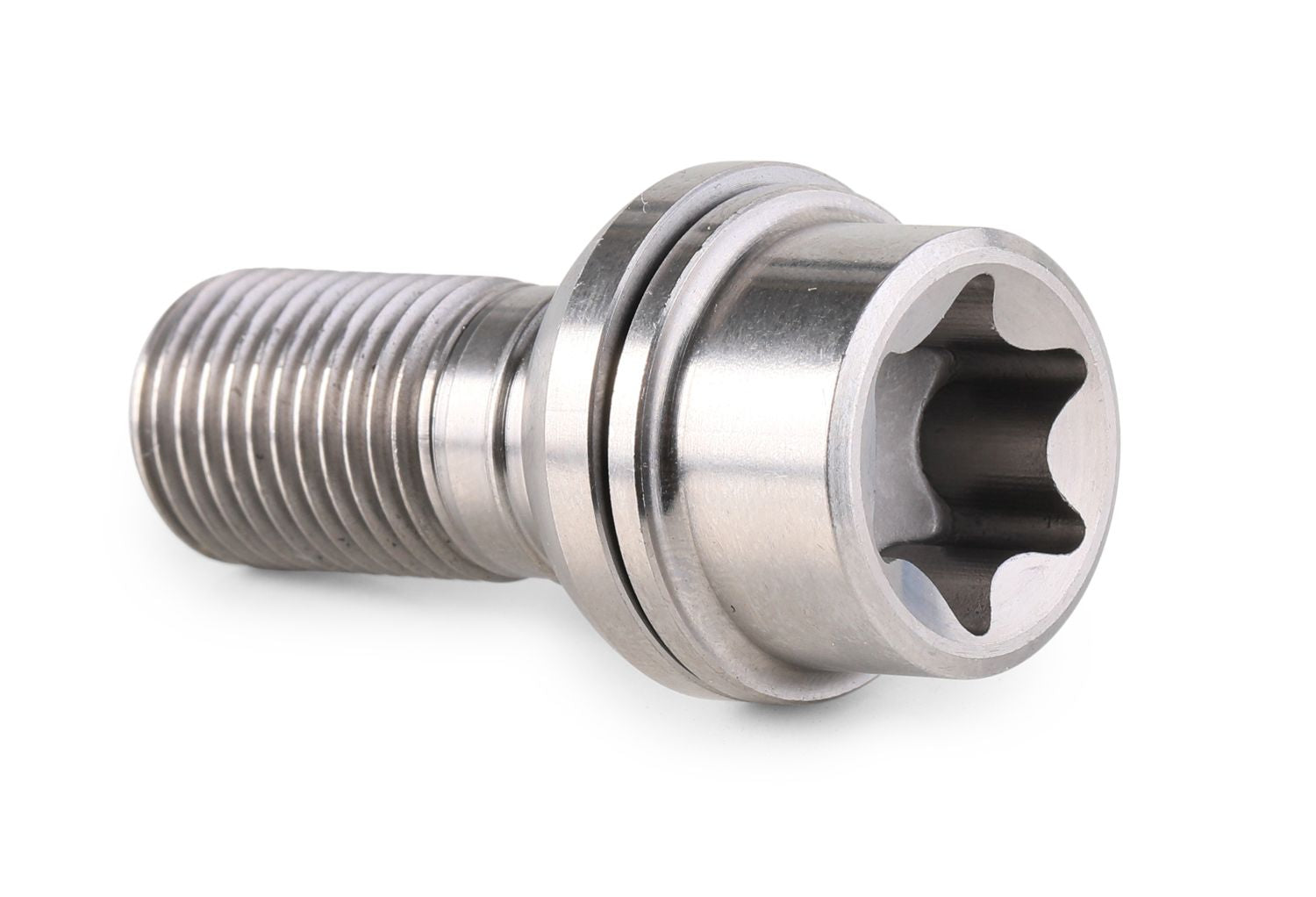

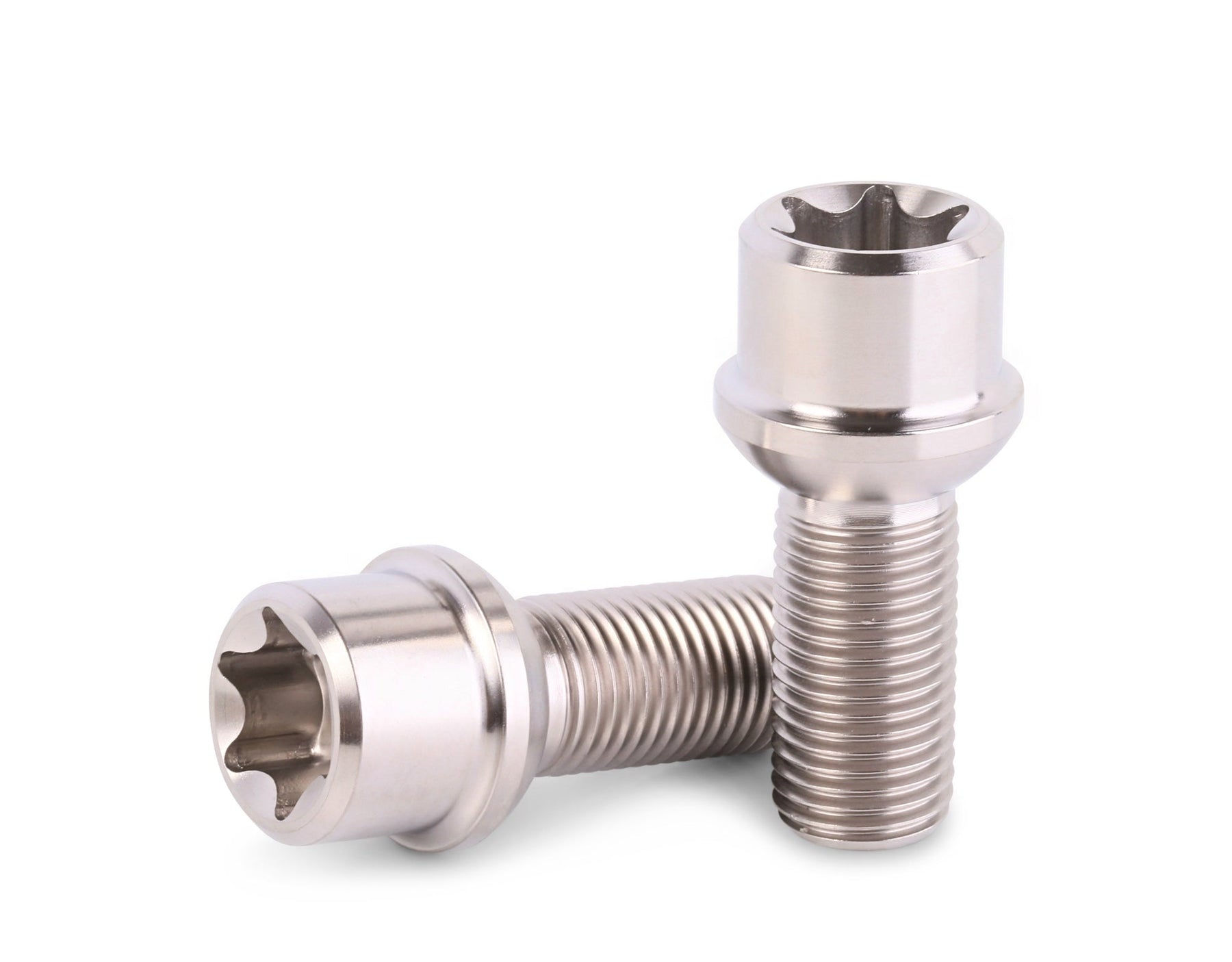

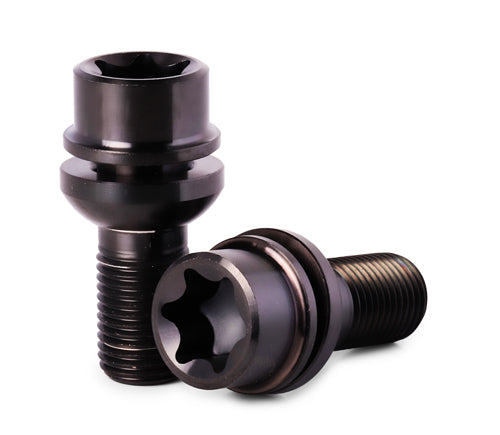

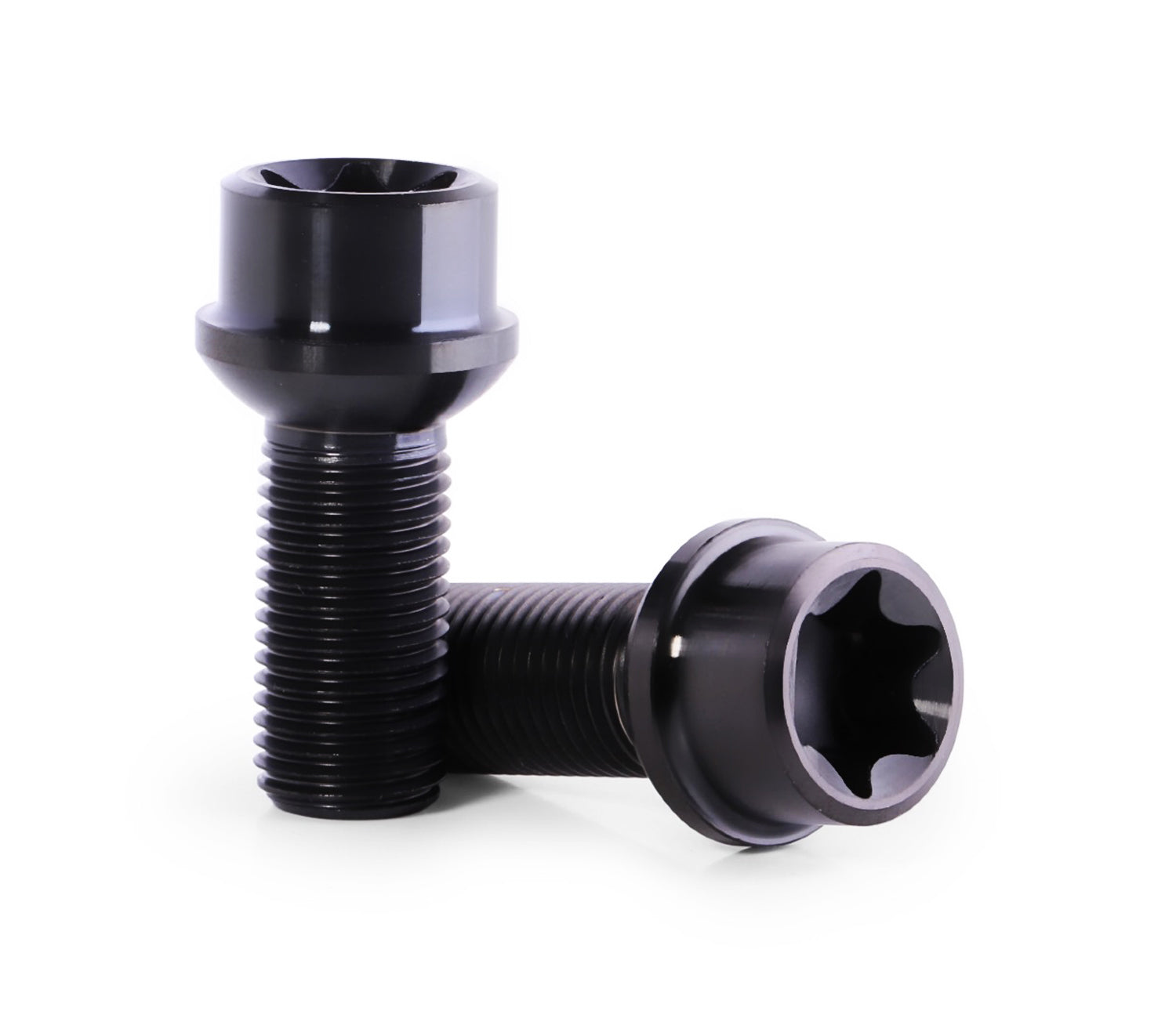

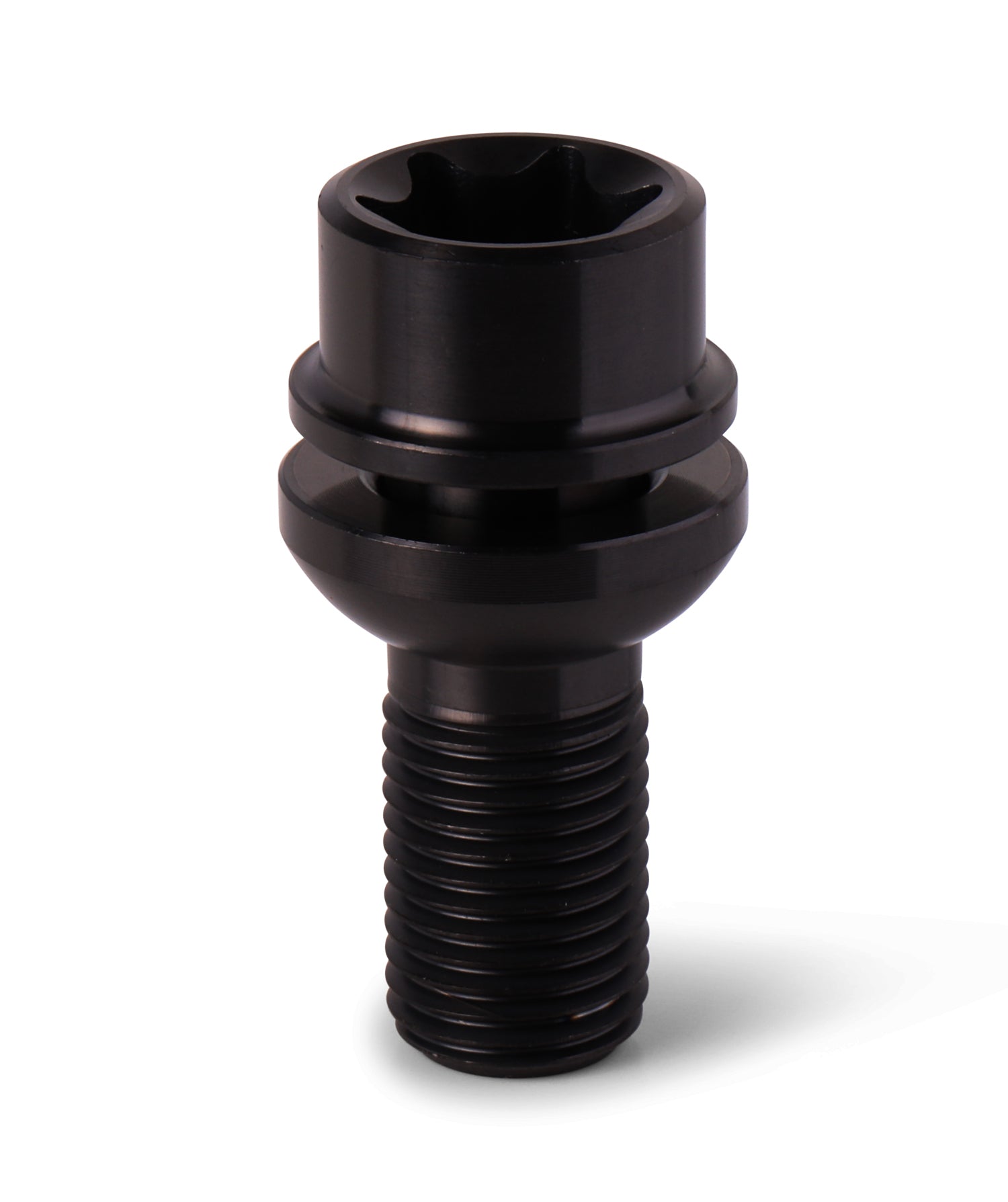

Note: TORX versions have a TORX 70 head - tool not included but is a common size in most tool boxes or can be purchased in a hardware store or online.
